Titanium Bar – A Flexible and High-Strength Metal for Your Needs

Why Titanium Bar Outperforms Conventional Metals

Titanium bar delivers an unmatched strength-to-weight ratio—up to twice that of 316L stainless steel—while resisting corrosion in seawater, chlorine, and body fluids. Whether the application is an aerospace fastener certified to ASTM B348, an orthopedic implant governed by ASTM F136 and ISO 5832-3, or a deep-sea ballast housing rated for 6,000 m depth, titanium bar provides the structural integrity no other commercially viable metal can match at comparable weight.

This guide presents mechanical data, grade-by-grade comparisons, industry-specific applications, machining considerations, and answers to the most pressing procurement questions—so engineers and buyers can specify the correct bar stock from the first order.

Material Classification and Key Grades

Titanium bar stock is categorized into commercially pure (CP) grades and titanium alloy grades. The four CP grades (Grade 1–4) differ only in oxygen and iron content; alloy grades introduce elements such as aluminum and vanadium to engineer specific mechanical profiles.

Grade 1 – Maximum Formability

Ultimate Tensile Strength (UTS): 240 MPa minimum; Yield Strength: 170 MPa minimum; Density: 4.51 g/cm³. Grade 1 bar, governed by ASTM B348 Grade 1, is the softest CP grade. It is preferred for desalination plant tubing sheets, chemical reactor liners, and architectural cladding where cold-forming is required.

Grade 2 – General-Purpose Workhorse

UTS: 345 MPa minimum; Yield Strength: 275 MPa minimum; Elongation: 20% minimum. The most widely stocked CP grade. Applications include offshore subsea heat exchangers, marine propeller shafts, and electrochemical processing equipment. ASTM B348 Grade 2 and ISO 9001 mill certifications are standard requirements.

Grade 4 – Highest-Strength CP Titanium

UTS: 550 MPa minimum; Yield Strength: 483 MPa minimum. Used in surgical implant components and high-pressure chemical piping where alloying elements must be avoided for biocompatibility or corrosion reasons.

Grade 5 (Ti-6Al-4V) – Aerospace and Medical Gold Standard

UTS: 950 MPa minimum; Yield Strength: 880 MPa minimum; Density: 4.43 g/cm³; Fatigue Limit (10⁷ cycles): ~620 MPa. The alpha-beta alloy containing 6% aluminum and 4% vanadium. Governed by ASTM B348 Grade 5 for industrial bar and AMS 4928 for aerospace. It dominates turbine blade forgings, aircraft structural frames, racing car suspension arms, and high-cycle orthopedic stems.

Grade 23 (Ti-6Al-4V ELI) – Implant-Grade Refinement

UTS: 860 MPa minimum; Yield Strength: 795 MPa minimum; Oxygen content ≤ 0.13 wt%. Extra-Low Interstitial (ELI) chemistry reduces oxygen, nitrogen, and iron to improve fracture toughness and fatigue resistance in cyclic loading environments. The mandatory standard for load-bearing orthopedic implants: ASTM F136 and ISO 5832-3. Used in femoral hip stems, spinal interbody cages, and dental abutment bars.

Grade 7 (Ti-0.2Pd) – Superior Chemical Resistance

Palladium addition (0.12–0.25%) dramatically lowers the corrosion rate in reducing acids such as hydrochloric and sulfuric. Preferred for chemical process equipment where Grade 2 would suffer crevice corrosion. Governed by ASTM B348 Grade 7.

Mechanical Performance Data: Titanium Bar vs. 316L Stainless Steel

The table below enables direct substitution analysis. All titanium values reference annealed bar per ASTM B348; 316L values reference ASTM A276 annealed bar.

Key takeaway: Grade 5 titanium bar achieves a specific strength 3.5× higher than 316L stainless steel while weighing 45% less per unit volume—a decisive advantage for weight-critical structures.

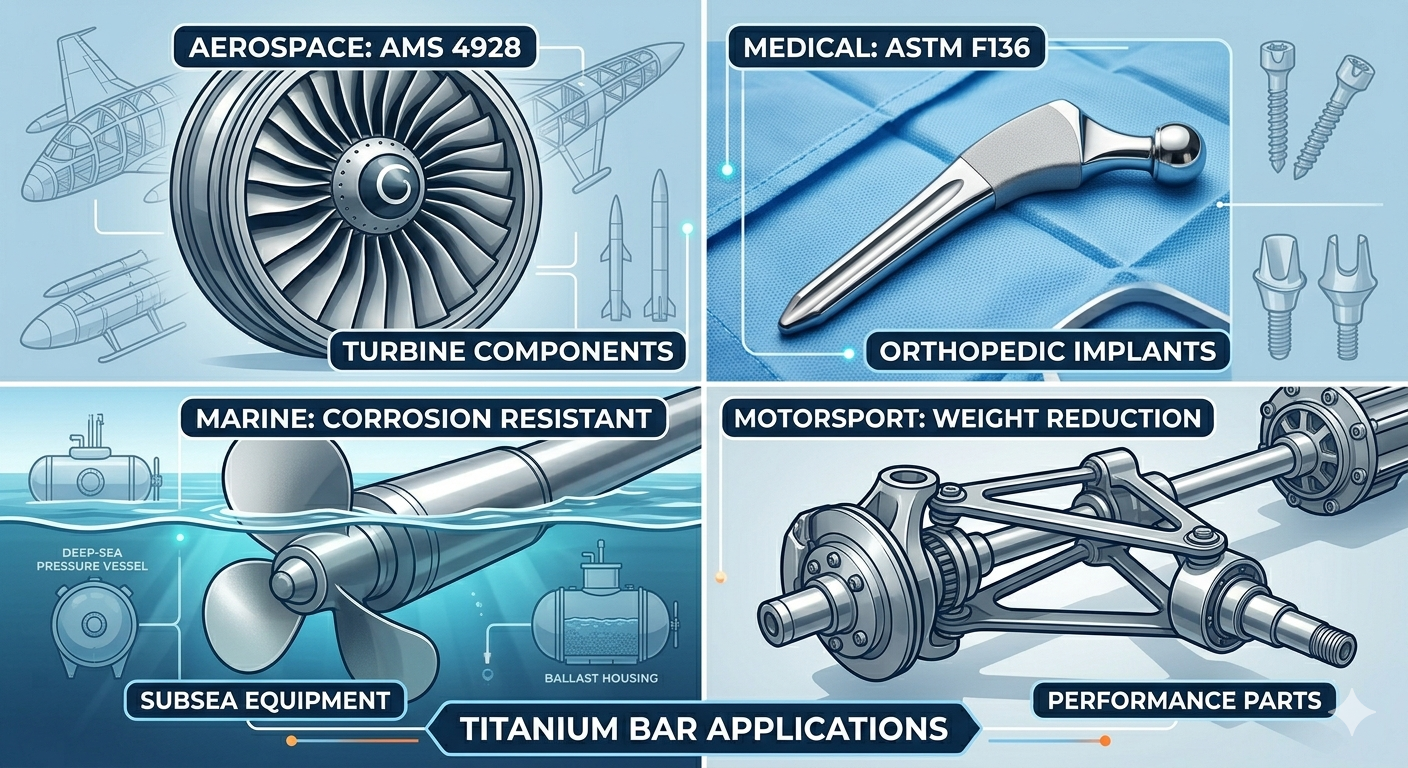

Industry-Specific Applications and Governing Standards

Aerospace and Defense

Titanium bar constitutes approximately 15–20% of structural weight in next-generation commercial aircraft. Critical applications include:

• Airframe fasteners and bolts (Grade 5, AMS 4928, NAS 1352 series) — replacing steel bolts at one-third the weight penalty
• Compressor disc forgings and turbine blade root bars (AMS 4928 / AMS 4965) rated to 315 °C continuous
• Hydraulic actuator housings and landing-gear beam blanks where fatigue life exceeding 10⁸ cycles is mandatory
• Hypersonic missile airframe bars (Grade 5 or Beta-C, ASTM B348 Grade 19)

Medical and Orthopedic Implants

Titanium's osseointegration capability—the direct bonding to living bone without fibrous tissue interface—makes it irreplaceable in load-bearing implants. Grade 23 bar (ASTM F136, ISO 5832-3) is mandated for:

• Femoral hip stems and acetabular shell blanks — machined from 50–80 mm diameter bar
• Spinal pedicle screws and interbody cage frames — torque-critical thread roots require tight fatigue data
• Dental implant abutment bars milled by CAD/CAM systems — Grade 4 or Grade 23 per ISO 10271
• Trauma fixation plates and intramedullary nails — where MRI compatibility (non-ferromagnetic) is essential

Marine and Subsea Engineering

Titanium bar's corrosion rate in seawater is effectively 0.025 mm/year—versus 0.5–1.5 mm/year for 316L—making 25-year maintenance-free service cycles achievable. Key uses:

• Deep-sea pressure vessel and ballast tank tie rods rated to 600 bar (6,000 m depth) using Grade 5 bar per ASTM B348
• Propeller shaft forgings for naval vessels — Grade 2 provides corrosion immunity without sacrificial anodes
• Desalination plant heat exchanger tube sheets in Grade 2 per ASTM B348 and ASME SB-348
• Tidal turbine blade root bolts and mooring anchor pins in Grade 5

Chemical Processing and Energy

In chlor-alkali plants and wet-chemistry reactors, titanium outperforms Hastelloy at lower cost per unit volume. Specific applications include:

• Electrolytic cell electrode supports — Grade 1 bar for maximum conductivity and formability
• Nitric acid and acetic acid reactor shafts — Grade 2 bar, service temperature up to 250 °C
• Hydrochloric acid pump shafts — Grade 7 (Ti-0.2Pd, ASTM B348 Grade 7) where reducing-acid crevice corrosion is the failure mode
• Nuclear waste storage container fasteners — Grade 12 (Ti-0.3Mo-0.8Ni) for combined strength and reducing-acid resistance

Motorsport and High-Performance Automotive

Formula 1 regulations permit titanium in suspension uprights, gearbox shafts, and wheel fasteners where the weight saving directly translates to lap time. Grade 5 bar machined to AMS 4928 provides a 40% weight reduction over equivalent steel components with no loss in fatigue life at the 10⁷-cycle threshold.

Standard Dimensions and Procurement Specifications

Titanium bar is available in round, hexagonal, square, and flat (rectangular) profiles. The following table summarizes standard stock dimensions and governing specifications.

Surface finish options include: hot-rolled descaled (HRD), cold-drawn bright annealed (CDBA), and centreless-ground (tolerance ±0.05 mm). Aerospace and medical applications typically mandate centreless-ground bar with mill certificate traceability to heat number.

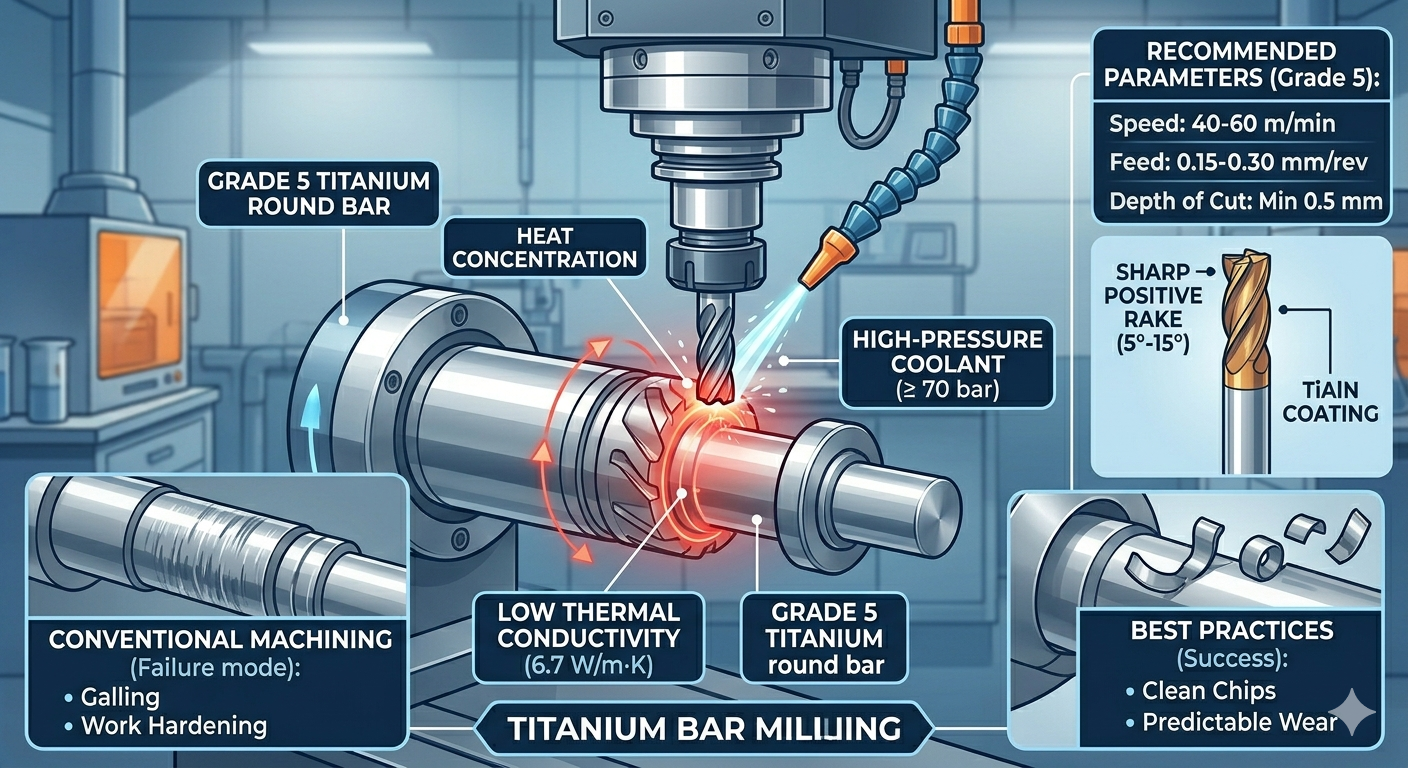

Machining Titanium Bar: Challenges and Best Practices

Titanium's low thermal conductivity (6.7 W/m·K for Grade 5, versus 16.3 W/m·K for 316L) causes heat to concentrate at the cutting edge rather than dissipate through the chip. Without correct process parameters, built-up edge, work-hardening, and tool galling result in rapid insert failure and dimensional rejection.

Recommended Turning Parameters for Grade 5 Bar

• Cutting speed: 40–60 m/min (carbide uncoated or TiAlN-coated insert, ISO K10–K20)
• Feed rate: 0.15–0.30 mm/rev to maintain chip-breaking and avoid rubbing
• Depth of cut: Minimum 0.5 mm to cut below the work-hardened layer from prior passes
• Coolant: High-pressure flood coolant at ≥ 70 bar directed at the cutting zone is mandatory
• Tool geometry: Sharp positive rake (5°–15°) to minimize cutting force and heat generation

Milling and Drilling Notes

For milling Grade 5 bar, climb milling (conventional: avoided) with 3–5-flute TiAlN-coated end mills at 60–80 m/min surface speed maintains tool life above 30 minutes per edge. Drilling requires through-spindle coolant; peck-drilling cycles with 1× diameter pecks prevent chip packing and thermal seizure in deep holes.

CP grades (Grade 1–2) machine approximately 30% more easily than Grade 5 due to lower strength, but their gummy nature still requires sharp tooling and positive chip control.

Quality Assurance and Certification Requirements

Procurement of titanium bar for critical applications must specify the following documentation chain to ensure traceability and compliance:

1. Mill Test Certificate (MTC) to EN 10204 3.1 or 3.2 — heat-number-traceable chemical composition and mechanical test results
2. ASTM B348 or AMS 4928 compliance statement — confirming specification conformance per applicable grade
3. Ultrasonic Testing (UT) report — mandatory for aerospace bar > 50 mm diameter per AMS 2631 / ASTM E2375
4. Chemical analysis (OES or ICP) — verifying oxygen content for Grade 23 ELI (≤ 0.13 wt%) per ASTM F136
5. ISO 9001:2015 / AS9100D Quality Management System certificate from the mill — required by most Tier 1 aerospace and medical OEMs
6. REACH / RoHS declaration for Grade 7 (palladium content requires conflict-mineral disclosure in EU supply chains)

Grade Selection Guide by Application

Frequently Asked Questions

Q1: What is the difference between Grade 5 and Grade 2 titanium bar, and how do I choose?

Grade 2 is commercially pure titanium: no alloying elements, UTS 345 MPa, excellent corrosion resistance, and easy cold formability. It is the cost-effective choice for chemical process equipment, marine heat exchangers, and medical instruments that do not carry structural loads. Grade 5 (Ti-6Al-4V) is an alpha-beta alloy with UTS 950 MPa—nearly 3× stronger—but it costs 20–30% more per kilogram and is significantly harder to machine. Choose Grade 5 whenever the component is load-bearing, fatigue-critical, or weight must be minimized. Choose Grade 2 when corrosion resistance is the primary driver and mechanical loads are low.

Q2: Why is titanium bar difficult to machine compared to stainless steel?

Three properties combine to make titanium challenging: (1) Low thermal conductivity (6.7 W/m·K) means heat cannot escape through the chip—it accumulates at the tool tip, accelerating wear; (2) High chemical reactivity at elevated temperature causes titanium to weld (gall) onto the cutting edge, producing built-up edge; (3) Work hardening—the surface hardens during each pass, so the next pass must cut below that layer. Correct management of cutting speed (≤ 60 m/min), high-pressure coolant (≥ 70 bar), sharp positive-rake tooling, and minimum 0.5 mm depth of cut resolves all three issues and gives predictable tool life.

Q3: Is titanium bar truly biocompatible? What standards confirm this?

Yes. Titanium forms a stable, inert TiO₂ oxide layer that prevents ion release into tissue. Decades of clinical evidence confirm negligible cytotoxicity and no reports of systemic allergic response—unlike nickel-containing alloys. For regulatory compliance, biocompatibility is governed by ISO 10993-1 (biological evaluation of medical devices) and ISO 10993-5 (cytotoxicity testing). Material-level conformance is confirmed by ASTM F136 (Grade 23 for implants) and ISO 5832-3. Note that some patients show sensitivity to vanadium; in those cases, vanadium-free alloys such as Ti-6Al-7Nb (ISO 5832-11) are specified instead.

Q4: Can titanium bar be welded, and what precautions are required?

Titanium bar can be welded using GTAW (TIG) welding with Grade-matched filler wire. The critical requirement is inert gas shielding: titanium absorbs oxygen, nitrogen, and hydrogen above 400 °C, causing embrittlement. This demands trailing and backing gas shields (99.999% argon), weld area cleanliness (IPA wipe, no grease), and strict inter-pass temperature control below 150 °C. Weld quality is verified per AWS D1.9 (structural titanium) or ASME Section IX (pressure equipment). Post-weld heat treatment (PWHT) at 540–600 °C in vacuum or argon is used to relieve residual stress in Grade 5 weldments.

Q5: How does titanium bar compare to aluminium alloys for aerospace weight savings?

Aluminium alloys (e.g., 7075-T6: UTS 572 MPa, density 2.81 g/cm³, specific strength ~204 MPa·cm³/g) match or slightly exceed Grade 5 titanium in specific strength at room temperature. However, titanium retains full mechanical properties to 315 °C where aluminium degrades sharply above 150 °C. Titanium also provides superior corrosion resistance without surface treatment and offers a higher fatigue threshold. The engineering choice is: aluminium for non-thermal, cost-sensitive structures; titanium for hot-section, fatigue-critical, or corrosive-environment applications where mass is also constrained.
